Pitch Spectator Mesh Fencing

The spectator mesh fencing panels come with a double horizontal welded system typically suited for football pitches, hurling pitches, GAA grounds, schools, ball courts, hockey pitches, and all types of sports and recreational areas.

Download Brochure

About

Pitch spectator Fencing

The pitch spectator mesh fencing from Whelan Engineering can be supplied in the standard 3D 5mm weld mesh fencing, 2D 6/5/6 weld mesh fencing, or 2D 8/6/8 weld mesh fencing, with a typical height of 1.2m and an aperture of 200 x 50mm.

The addition of the top rail ensures that this system will provide spectator comfort and safety for years to come.

Other Information

Lorem Ipsum

Our Pitch Spectator mesh fencing is ideal for high-impact environments such as GAA grounds, football pitches, schools, and multi-use games areas. Available in a range of mesh types and finished with a top rail for added safety and comfort.

Panel sizes and colour options outlined below. Please note all colours other than RAL 6005 Green incur additional cost and lead time.

Available finishes:

  • Galvanised according to EN 1461 and powder coated in selected RAL

Standard colour* range:

Specifications: 3D

Rigid mesh panel made of horizontal & vertical steel wires, welded together at each intersection. Rigidity is achieved by 100mm high pressed V-beams.

  • Panel Width (Length): 2505mm
  • Panel Height: 1230mm
  • Wire Diameter: 5mm
  • Wire Spacing Horizontal: 50mm
  • Wire Spacing Vertical: 200mm (at profile beam: 50mm)
  • Top Edge Projection: 30mm

Specifications: 2D 656

Rigid mesh panel made of horizontal & vertical steel wires, welded together at each intersection.

  • Panel Width (Length): 2506mm
  • Panel Height: 1230mm
  • Wire Diameter Horizontal: 8mm (Double)
  • Wire Diameter Vertical: 6mm (Single)
  • Wire Spacing Horizontal: 50mm
  • Wire Spacing Vertical: 200mm
  • Top Edge Projection: 30mm

Specifications: 2D 868

Rigid mesh panel made of horizontal & vertical steel wires, welded together at each intersection.

  • Panel Width (Length): 2506mm
  • Panel Height: 1230mm
  • Wire Diameter Horizontal: 8mm (Double)
  • Wire Diameter Vertical: 6mm (Single)
  • Wire Spacing Horizontal: 50mm
  • Wire Spacing Vertical: 67mm

Specifications: 2D 868 Rebound

Rigid mesh panel made of horizontal & vertical steel wires, welded together at each intersection.

  • Panel Width (Length): 2506mm
  • Panel Height: 1230mm
  • Wire Diameter Horizontal: 8mm (Double)
  • Wire Diameter Vertical: 6mm (Single)
  • Wire Spacing Horizontal: 50mm
  • Wire Spacing Vertical: 67mm

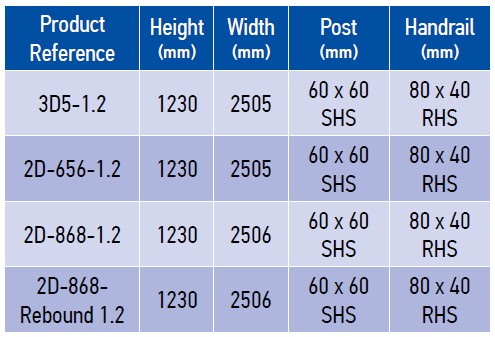

Panel Size options

Lorem Ipsum

Pitch Spectator mesh fencing is available in four different specifications. All our fencing is tested, quality-controlled and certified with nationwide delivery available.
